Reaction kinetic studies in Plug Flow Reactor
Department of Chemical engineering NITK presents...
CONTINUE..
What would you like to do.
Reaction Kinetic Studies in Plug Flow Reactor
VIRTUAL LAB @ NITK

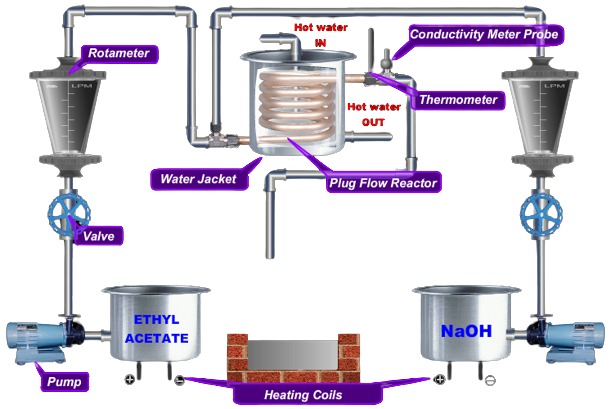

- Click on Label Tab to see the Experimental Setup.
- Click on Setup Tab to Configure Experimental Setup.
- Click on Experiment Tab to perform the experiment.
- Set NaOH Flowrate first and then Ethyl Acetate and wait till reactor is filled.
- Wait for reactor to achieve steady state and then add the readings to Observation.
- Click on Data tab to configure Experimental data.
- Click on Evaluate button to see the Results.
- Click on Evaluation tab to check the Simulated Values.
Reaction Temperature:
° Celsius
Rate Constant(k):
Litre/gmol.min
Frequency Factor(k0):
x108 (Litre/gmol.min)
Activation Energy(E):
J/mol
Stock Concentration of Ethyl Acetate:
0.020 MStock Concentration of NaOH:
0.020 MReaction Temperature:
° Celsius
User values
| Temperature (Celsius) |
Rate constant (litre/gmol.min) | Frequency Factor x10(-8)(litre/gmol.min) | Activation Energy(J/mol) |
|---|
Simulated values
| Temperature (Celsius) |
Rate constant (litre/gmol.min) | Frequency Factor x10(-8)(litre/gmol.min) | Activation Energy(J/mol) |
|---|
Experiment.

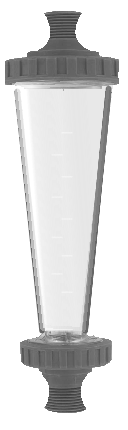

Rotameter Reading:
0.00 LPH
Rotameter Reading:
0.00 LPH

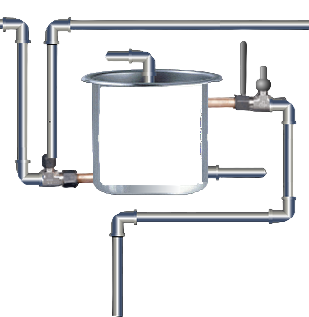

Hot water IN
Hot water OUT

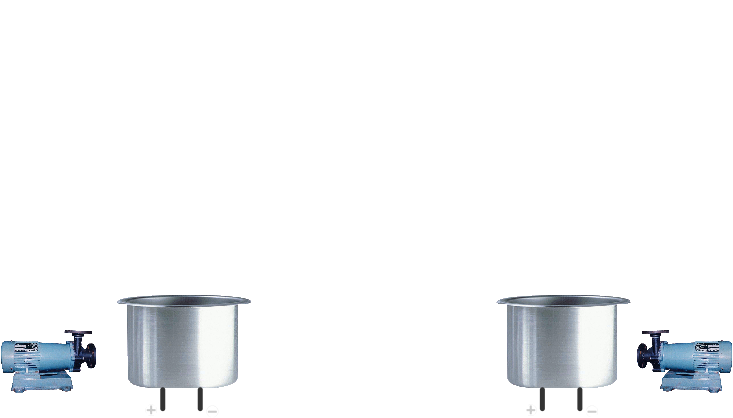

ETHYL ACETATE
NaOH
| Process fluid | Manometric fluid | Flowrate(lpm) | h1(cm of Manometric fluid) | h2(cm of Manometric fluid) |
|---|
Observations
Click on the rows which you want to delete
| Ethyle Acetate Flowrate (Litre per Hour) | NaOH Flowrate (Litre per Hour) | Conductivity (milliSiemens/cm) |
|---|
Email is required
Experimental Data
Diameter of Reactor Coil :
33 cm
Number of turns in the Coil :
5
Diameter of Reactor tube :
1.1 cm
Stock Concentration of Ethyl Acetate:
0.020 M
Stock Concentration of NaOH:
0.020 M
Reaction Temperature:
30 degree Celsius
×
Manometric Fluid is about to Overflow.
Change the Manometer to Mercury.
Trial =
